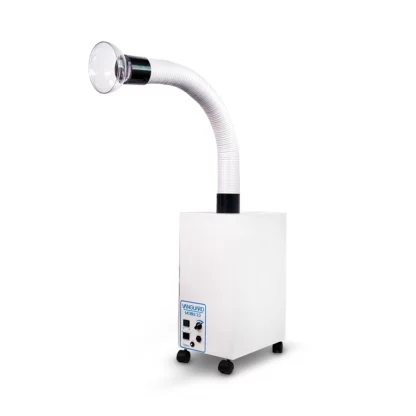

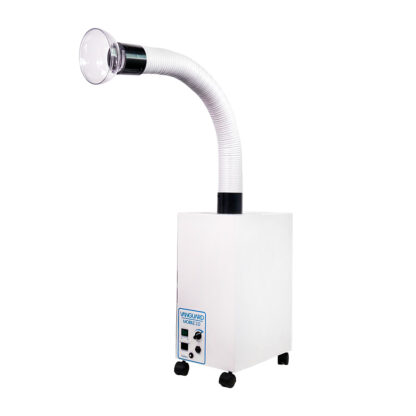

Vanguard Mobile 2.0 – Extraoral Dental Suction for Aerosols – 10337


The Vanguard Mobile 2.0 is a chairside extraoral dental suction unit for dental offices and operatories, designed to safely capture aerosols during aerosol generating procedures (AGPs).  Reduces up to 84% of bacteria from aerosols and 95% from spatter.*

  • Aerosol capture a critical part of infection prevention and control (IPC)
  • Whisper-quiet (54 dBA)
  • Portable
  • Convenient foot pedal start/stop

Assembled in the USA. Extremely quiet due to a high quality sealed suction system.

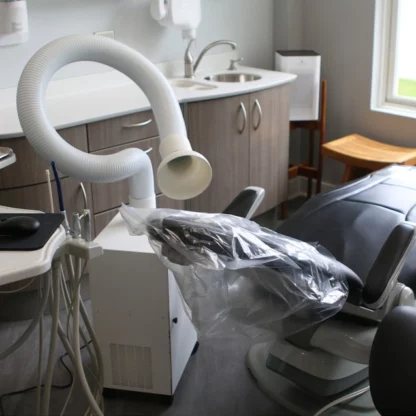

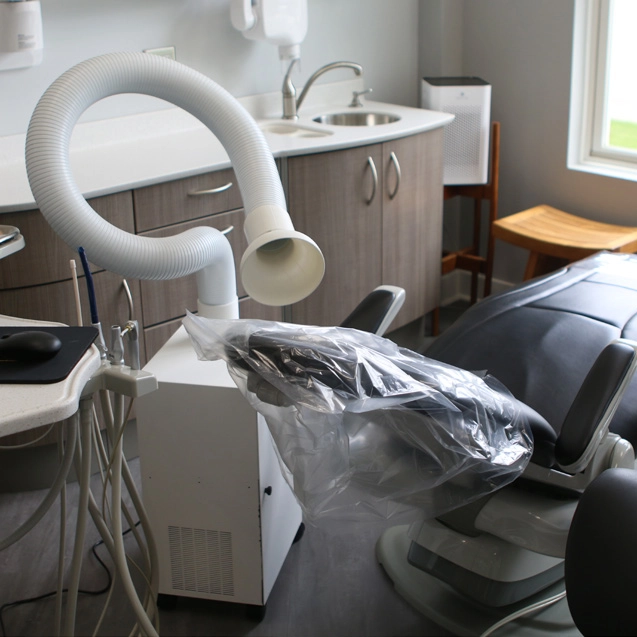

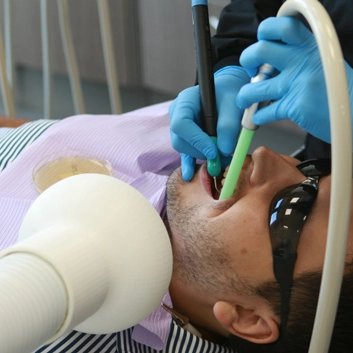

This chairside dental aerosol vacuum safely captures aerosols during AGPs with simple hands-free operation. Position the capture mouth within 6 inches of a patients mouth for ideal aerosol capture. We offer full tech support for our products and proudly manufacture this unit in our Southern California facility.

This extra oral suction system is superior to competitors providing 3x the suction at nearly half the price with quality American manufacturing. It’s quiet (54 dB on high) and utilizes a powerful medical grade HEPA filter which safely captures microbes such as viruses and other contaminants within biological aerosols.

Filter Replacement Information

Do you have version 1.0?  Click here

Vaniman Recommended Disinfectants

HEPA Air Filtration for Indoor Professional and Industrial Settings


Product Features:

  • High-Suction Turbine Motor
  • 4 Speed Adjustment
  • Quiet 54 dBA Operation (High Speed Scaler is 70 dBA)

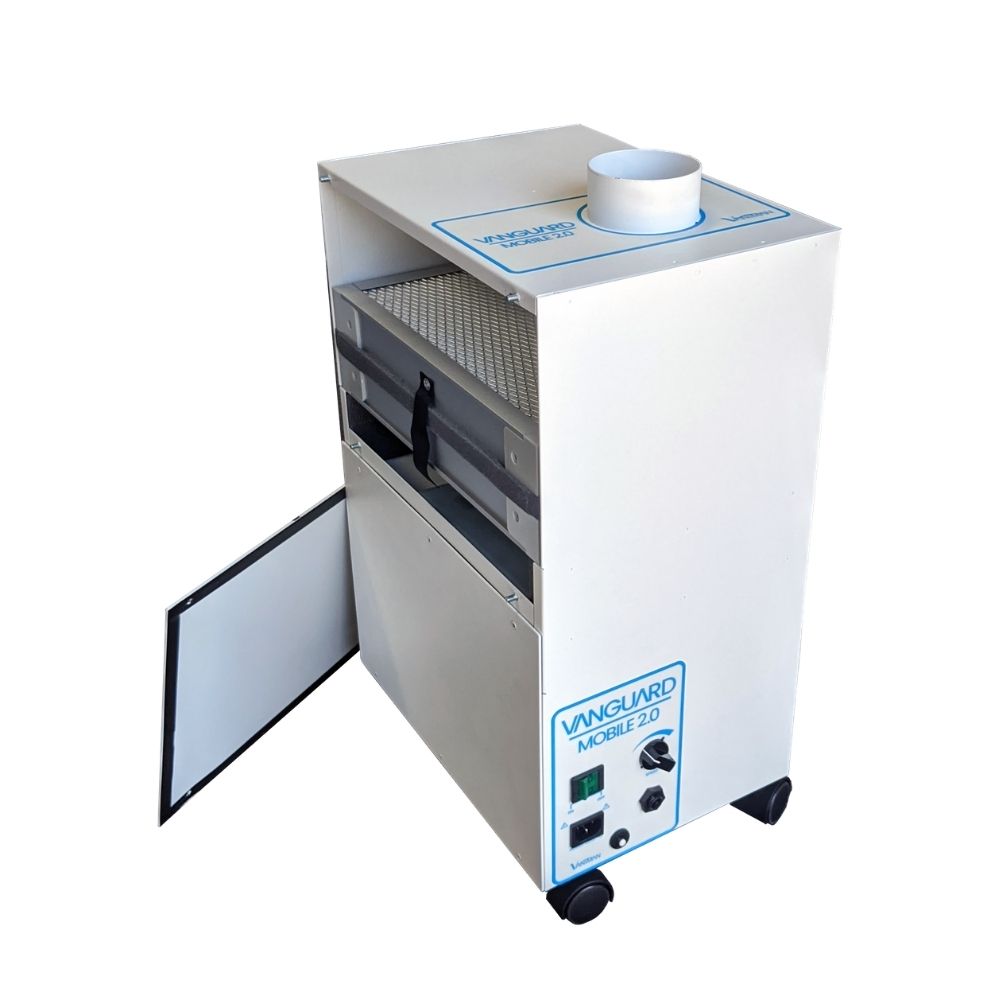

  • Stage 2 HEPA Filter 99.97% @ 0.3 Micron – Equal to MERV 17 – For Microbes
  • Stage 1 Pre-Filter 97% @ 1 Micron For Larger Particulate

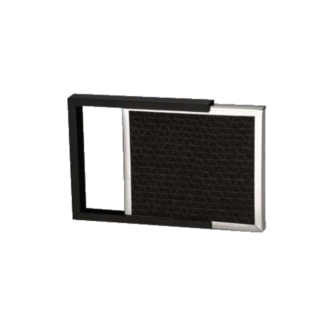

  • External odor filtration option (Activated Charcoal is known to remove mercury from air)
  • Easy Maintenance and Low Repair Rate and Tech Support
  • Flexible Collection Tube
  • Removable Capture Mouth can be Disinfected
  • 4 Durable Rolling Wheel Casters for Movement
  • Included Foot on/off switch
  • Vaniman 1 Year Manufacturer Warranty

P/N: 10337

Your Purchase Includes:

Vanguard Mobile 2.0 Dental Aerosol Vacuum Unit

Diagrams & Installation Instructions:


How loud is 54 dB?

According to IAC Acoustics Lab, 54 dB is comparable to: Quiet suburb, conversation at home. Large electrical transformers at 100 feet.

What are the recommended sterilization methods?

We recommend removing the collection mouthpiece and cleaning with alcohol or equivalent anti-viral solution. Do not autoclave.

What is the recommended maintenance?

Inspect and replace the pre-filter around once per quarter. Inspect and replace HEPA filter every six months and replace if suction is hindered.

Why don’t you use UV light in your unit?:

UVC light is only effective at killing viruses it “can see” The pleats and design of HEPA filters is not penetrated by UV light. Additionally, “This option is not one of the CDC recommended designs. For more on this, check our article on whether UV light is effective in HEPA devices or not.

How does this unit compare to competing extraoral dental vacuums?

  • Since we’ve been making suction systems for over 30 years, our patented technology and existing design easily translated into a high quality extraoral suction system.  Our unit offers a superior quality turbine motor which offers 2.3X the suction power of comparable models and thanks to years of engineering, our system is the quietest aerosol suction unit on the market at a low 54 dB.  Also keep in mind that our unit is assembled in the USA at our facility in Southern California and is nearly 1/3 the price of other units. Vaniman offers full service technical support and is trusted name by all  major dealers.

Capture Hose Rigidity Adjustment (Tighten/Loosen):

Replacement Parts:


Assembled in USAUSA Flag


*Up to 84% reduction in aerosolized bacteria counts and 95% of spatter bacteria load when using Vaniman Vanguard Mobile in conjunction with HVE. Results may vary based on application and usage; numbers based on data captured during a 2020 pilot study performed by Dental Advisor in their Microbiology Report number 138.

Additional information

Weight 36 lbs
Dimensions 17 × 17 × 17 in
