Vaniman’s microabrasive sandblasters have tons of applications in all kinds of industries, and one of the things that makes them so handy is their ability to reach where other methods cannot. Hand sandpapering or hand polishing, for example, can’t usually get into the tiny nooks and crannies that a stream of abrasive media can.
But for those areas that are even harder to reach — around corners or deep in a cylinder, for example — sometimes even a blaster needs a little extra help.
That’s where these come in…

Right Angle Sandblasting Tips
Vaniman’s right angle tips can be fitted onto any Vaniman sandblaster handpiece using our adapter to give you a 90-degree turn in your media stream.
The precision linear stream from the tungsten carbide tip makes fine detail work easy and accessible.

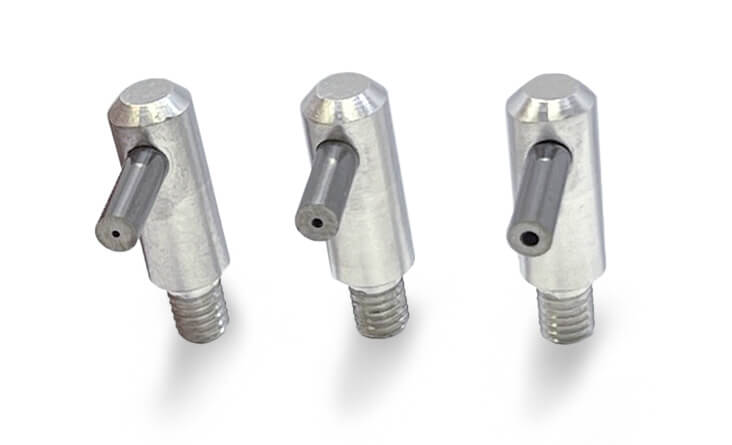

Our right angle tips come in small, medium, and large sizes.
- The small size is best for 25-50 micron media.
- The medium size is best for 50-100 micron media.
- The large size is best for 100-250 micron media.

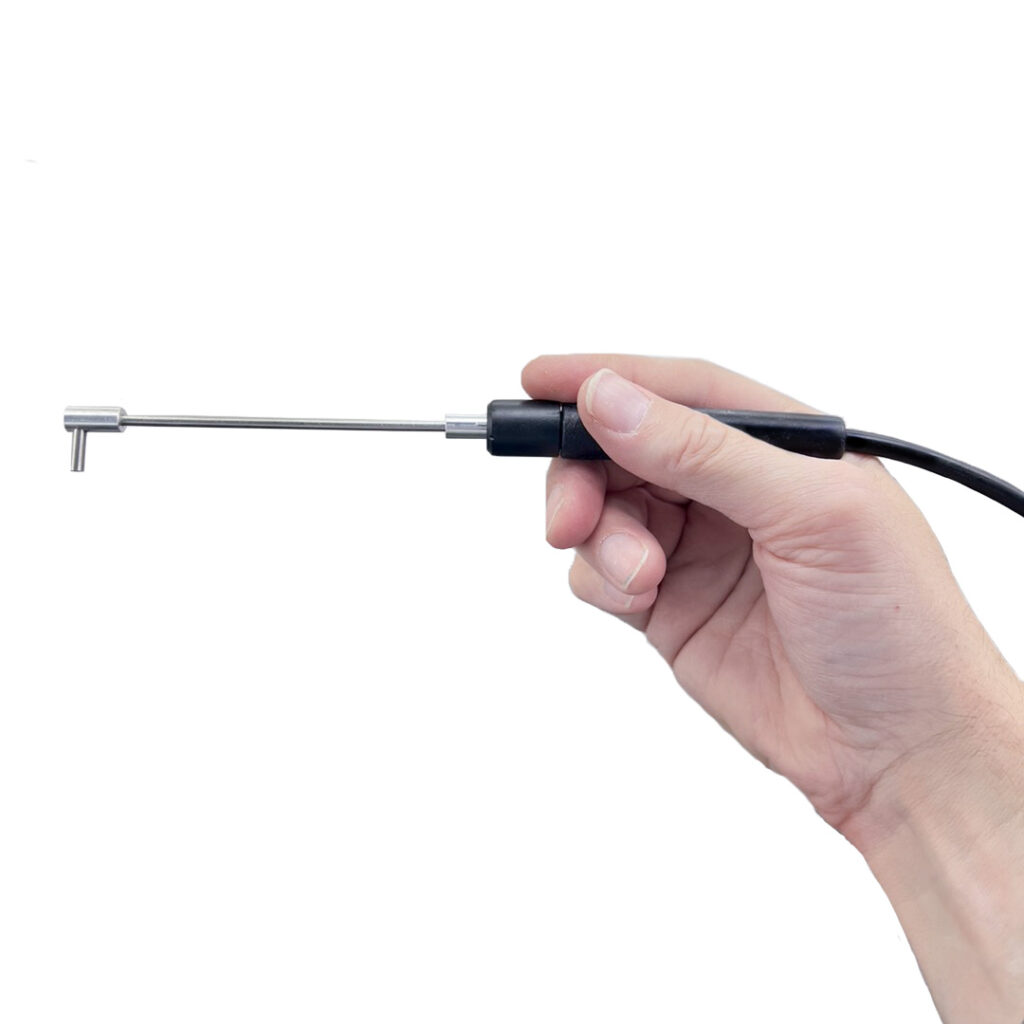

And if you’re really in need of a right angle tip to get to really narrow, generally inaccessible areas (think the bottom of a tube, or in small recesses in artisan pieces), we offer extended right angle tips as well!

Ask your dealer or shop our website to order yours.
And don’t forget that adapter! These tips aren’t designed for the standard Vaniman nozzle cap, you’ll need an adapter to make the right angle tips work.
-
Small Extended Right Angle Tip, .026″ (.65mm) (for 25/50 micron) – 97990$54.30View Details
-
Medium Extended Right Angle Tip, .036″ (.91mm) (for 50/100 micron) – 97991$54.30View Details
-
Large Extended Right Angle Tip, .059″ (1.5mm) (for 100/250 micron) – 97992$54.30View Details
-
Angled Tip Adapter – 97908$21.01View Details
Video transcript:
You might know that Vaniman has a variety of blasting tips for you to choose from, but you might NOT know that you can also get tips with a right angle for hard-to-reach areas!
These right angled tips come in small, medium, or large for different sizes of media.
The shape helps get into crevices, crags, and corners you might not otherwise be able to reach.
And if you’ve got a particularly difficult spot to reach — say, the bottom of a valve body or a rock sample bore or something — we also offer extended right angle tips!
You can find these on our website, or you can ask your dealer, and if you have any questions, you can call Vaniman at (760) 723-1498.
More: How to Install Right Angle Tips (Video)
Video transcript:
Vaniman offers right-angle tips to help get into hard-to-reach areas. But they do require an adapter — here’s how to install it.
Unscrew the cap from the handpiece. Take out the old tip and the o-ring. If they’re still in good condition, you can keep them for later.
Take this time to inspect the handpiece and tubing to see if there are any worn out spots or holes. The black tube should be perfectly flush with the white handpiece insert. The o-ring needs to sit against this for a completely sealed system.
If it looks good, let’s get that right-angle tip installed.
The adapter kit comes with a new o-ring, a threaded metal adapter, and a cap.
Take the new nozzle cap and hold it upside down. Drop in the adapter with the threads facing out, letting gravity set it in place.
Then drop the new o-ring in on top, again letting gravity set it in place. You’ll need to make sure it’s flat against the back of the adapter — you may need to shake it a little so it falls flat.
Keep the cap upside down and point the handpiece down to match it. Screw the cap back into place, making sure it’s not not cross threaded, and that they sit close and evenly together.
Now your adapter is in place. Screw the right angle tip through the top of the cap until tight.
Once it’s in place, you’re ready to start using it! Note, too: once the adapter is in place, you can swap out any right angle tips without removing it, including extended right angle tips.
