Vaniman Industrial Product

StoneVac AM – SLS 3D Printing Vacuum & Powder Recovery – 11051

$1,999.00

The StoneVac AM for SLS 3D printing is a powerful StoneVac dust collector capable of handling heavier dust, powder and particulates from additive manufacturing processes. This dust collector was designed to meet the demands of high production powder bed 3D printers (metals, Nylon 11, Nylon 12 and more). A bagless dustbin in the unit and powder bucket on the ESD-resistant Accumulator (included) make powder recovery simple and easy.

The Additive Manufacturing model features a brushless motor which nearly doubles standard motor life, meaning the StoneVac AM can easily handle heavy and high volume use.

This vacuum can reclaim the printing powder, breaking most clumps back down to original size (approximately 60 μm) to be reused. (Before reusing powder, remember to do a final sieve of the powder, and then re-mix it in with more unused powder per the recommendations of the printer/powder manufacturer.)

All units are assembled by hand in the USA at our Southern California facility.

Each Unit Features:

  • Powerful & convenient powder recovery
  • 4 durable rolling wheel casters for movement
  • Class II, Division 2 vacuum

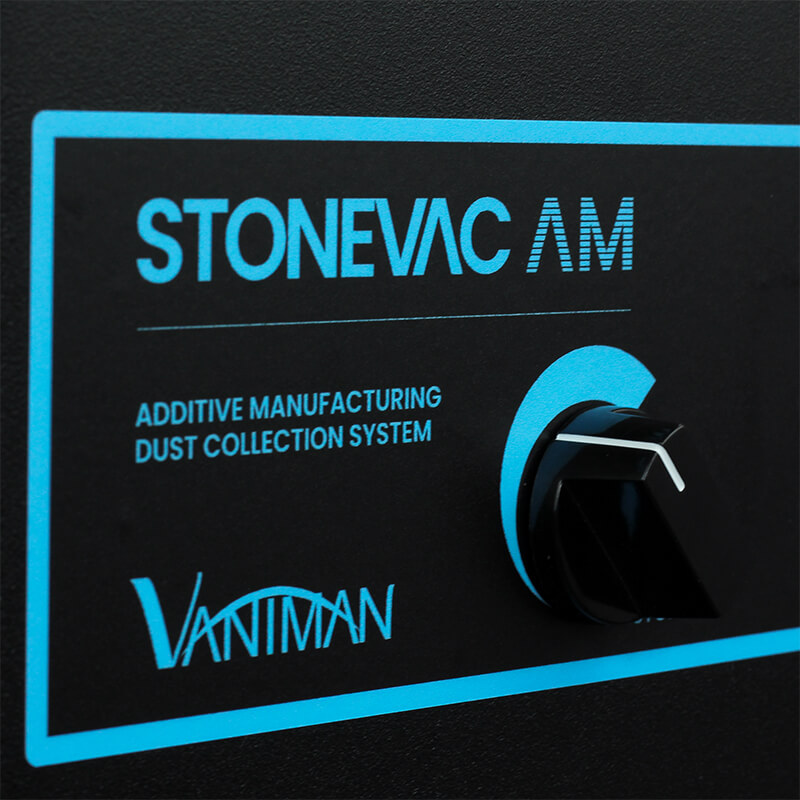

  • Adjustable speed control for varied applications
  • Long-lasting high-capacity brushless motor
  • Unit designed for 3D printing powder
  • Push button quick cleaning system
  • Lab grade HEPA filtration – captures 99.97% of dust at 0.3 microns
  • Pre-Filter Cyclone Accumulator made of ESD resistant material to capture up to 95% of particulates before they even get to the filter
  • Bagless design with removable dust bin
  • Easy maintenance
  • Vaniman warranty
  • Can also connect to any Vaniman microabrasive sandblaster (including the Master Problast 3 ESD)

Please note: ESD resistant pre-filter cyclone accumulator included; however, unit itself not composed of ESD resistant material.

Your Purchase Includes:

1x StoneVac AM Unit
2x 2-1/2″ Vacuum Hose (3 ft)
1x Large ESD-resistant Pre-Filter Cyclone Accumulator
1x Interface Cable

PN 11051

Instructions:

StoneVac Filter Replacement Schedule Info

Description

What is the Cyclone Filter Accumulator?

This vacuum is compatible with all types of dry powder-based 3D printing, including:

  • SLS (Selective Laser Sintering)
  • SLM (Selective Laser Melting)
  • DMLS (Direct Metal Laser Sintering)
  • SAF (Selective Absorption Fusion)
  • MJF (Multi Jet Fusion)
  • PBF (Powder Bed Fusion)
  • EBM (Electron Beam Melting)
  • Binder Jetting

The StoneVac AM can sync with any brand of powder based 3D printer, including:

  • Formlabs
  • Sinterit
  • Sintratec
  • EOS
  • 3D Systems
  • Prodways
  • HP
  • XYZ

And more…

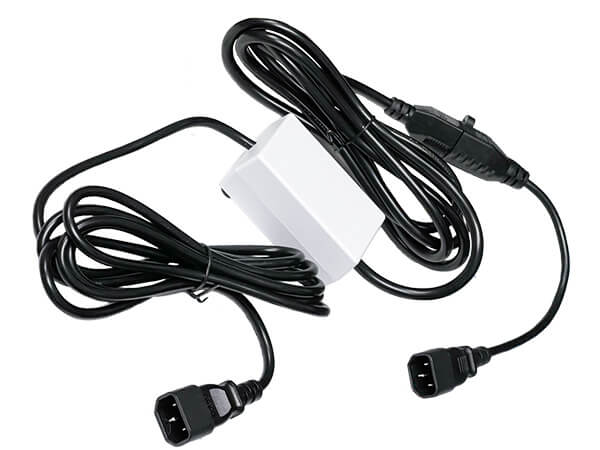

3D printer remote connection with adaptor

Replacement Parts:

Additional information

Weight 54 lbs
Dimensions 20 × 15 × 30 in
