Vaniman Dental Product

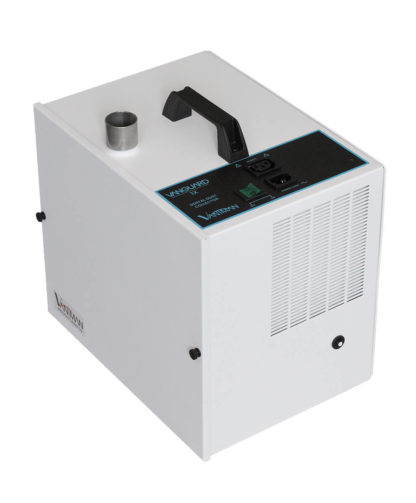

Vanguard 1X – 10310



The Vanguard 1X is a high-quality single station dental dust collector designed to collect dust and particulates at dental workstations. It has a low cost of ownership and requires very little maintenance with the average unit lasting over 20 years. All units are assembled by hand in the USA at our Southern California facility.

Product Features:

  • High-speed motor turbine technology
  • Quiet 55 dBA operation (normal conversation is 60 dBA)
  • Easy maintenace and low repair rate
  • Internal and external filtration options for HEPA and odor applications
  • Vaniman warranty

P/N: 10310  |  P/N with Accumulator: 10311

Your Purchase Includes:

1x Vanguard 1X unit, 1x 1-1/2″ Suction Hose (6ft)

Optional  Pre-Filter Accumulator.

Optional internal Odor Filtration Systems.

Optional Exhaust Odor or HEPA Filtration.

Looking for a dust collector designed for green state finishing & post-processing? View other dental dust collectors for special applications (click here).

Diagrams & Installation Instructions:

If you would like to purchase from a dealer, click here.

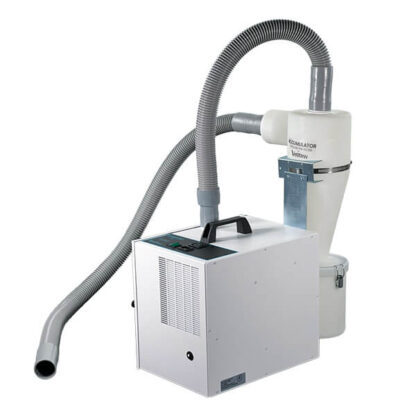

What is the Cyclone Filter Accumulator?

This unit is intended for use with:

  • Acrylic
  • Gypsum
  • Ceramics
  • Porcelain
  • Die-stone
  • Quartz
  • Alloy

Optional Accessories:

Replacement Parts:

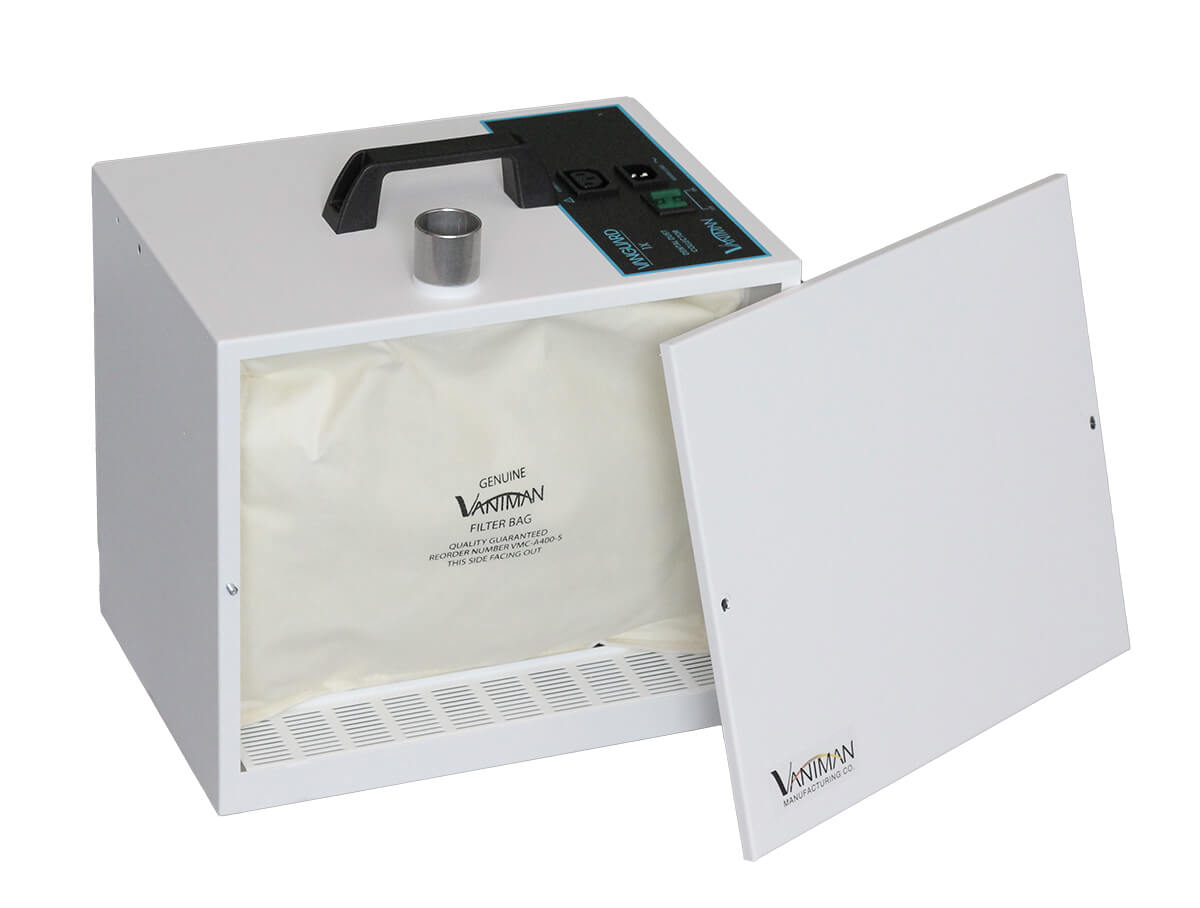

Blog: How To Replace Filter Bags

Assembled in USAUSA Flag

Additional information

Weight 35 lbs

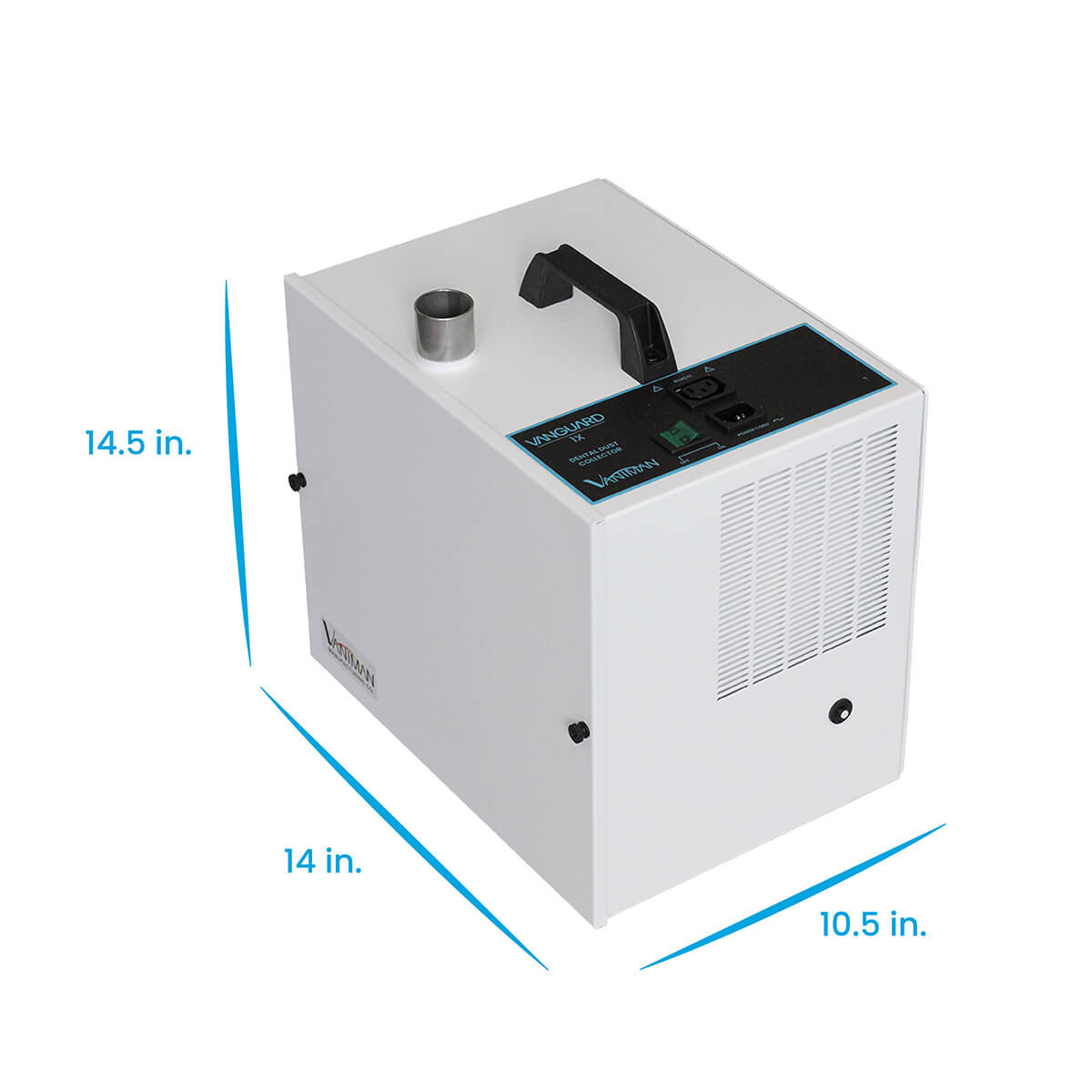

Dimensions 17 × 17 × 17 in
Choose Your Pre-Filter Accumulator

Yes, No
